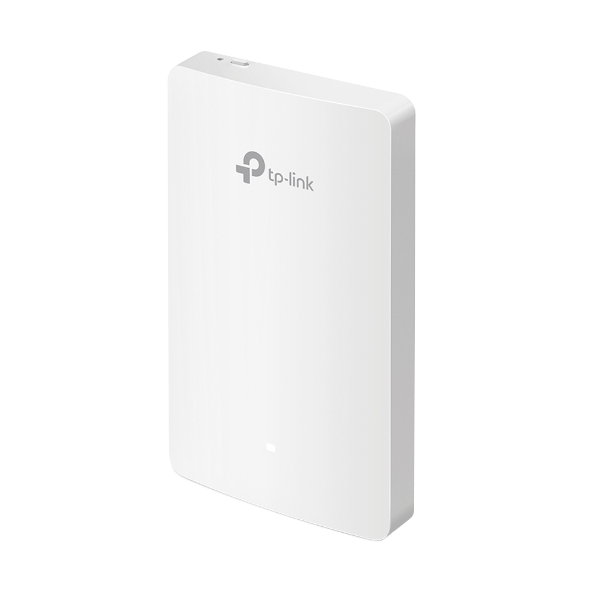

TP-LINK EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
เพิ่มเมื่อ: 2023-09-15 17:23:23.0
แก้ไขล่าสุด: 2025-02-18 12:38:32.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comACCESS POINT (แอคเซสพอยต์) TP-LINK EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
TP-LINK EAP615-Wall
ACCESS POINT (แอคเซสพอยต์) TP-LINK EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
- Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**
- High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

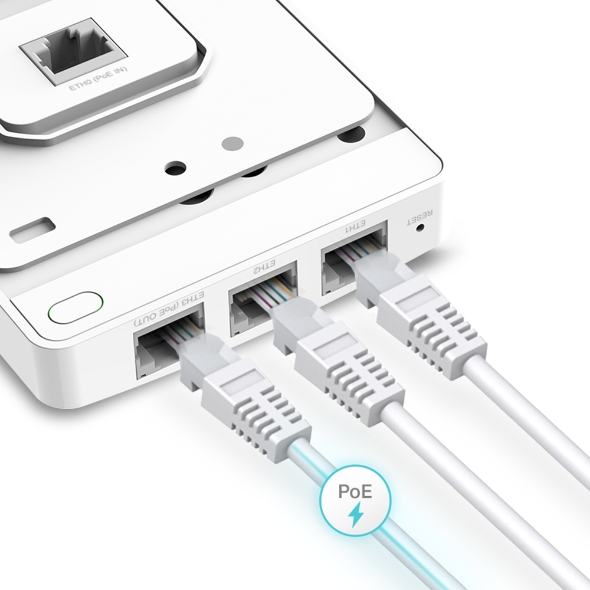

- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡
- Centralized Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.†
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
HARDWARE FEATURES
- Interface
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
- Physical Security Lock : Yes
- Button : Reset
- Power Supply 802.3af/at : PoE
- Power Consumption :
• EU: 10W (802.3at PoE, PoE Out off)
• US: 11.5W (802.3at PoE, PoE Out off)
- Dimensions ( W x D x H ) : 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
- Antenna 2 Dual-Band Antennas :
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
- Mounting : Wall Plate Mounting
WIRELESS FEATURES
- Wireless Client Capacity 100+
- Wireless Standards IEEE 802.11ax/ac/n/g/b/a
- Frequency 2.4 GHz and 5 GHz
- Signal Rate
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
- Wireless Functions
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
- Wireless Security
• Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
• CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)
• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
- Omada App Yes
- Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
- Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts Yes
- LED ON/OFF Control Yes
- Management MAC Access Control Yes
- SNMP v1, v2c, v3
- System Logging Local/Remote Syslog Local/Remote Syslog
- SSH Yes
- Web-based Management HTTP/HTTPS
- L3 Management Yes
- Multi-site Management Yes
- Management VLAN Yes
- Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
- Certification CE, FCC, RoHS
- Package Contents
• AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
• Installation Guide
• Mounting Kits
- System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
- Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
